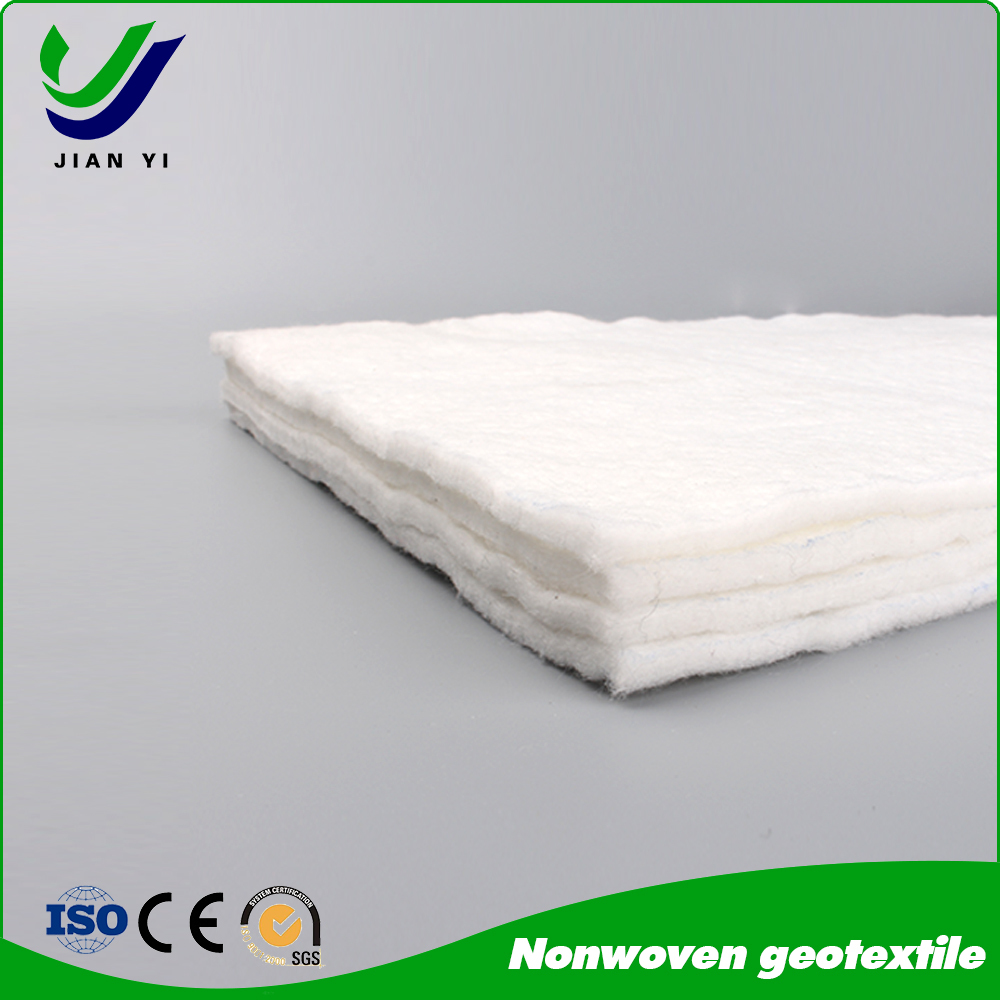

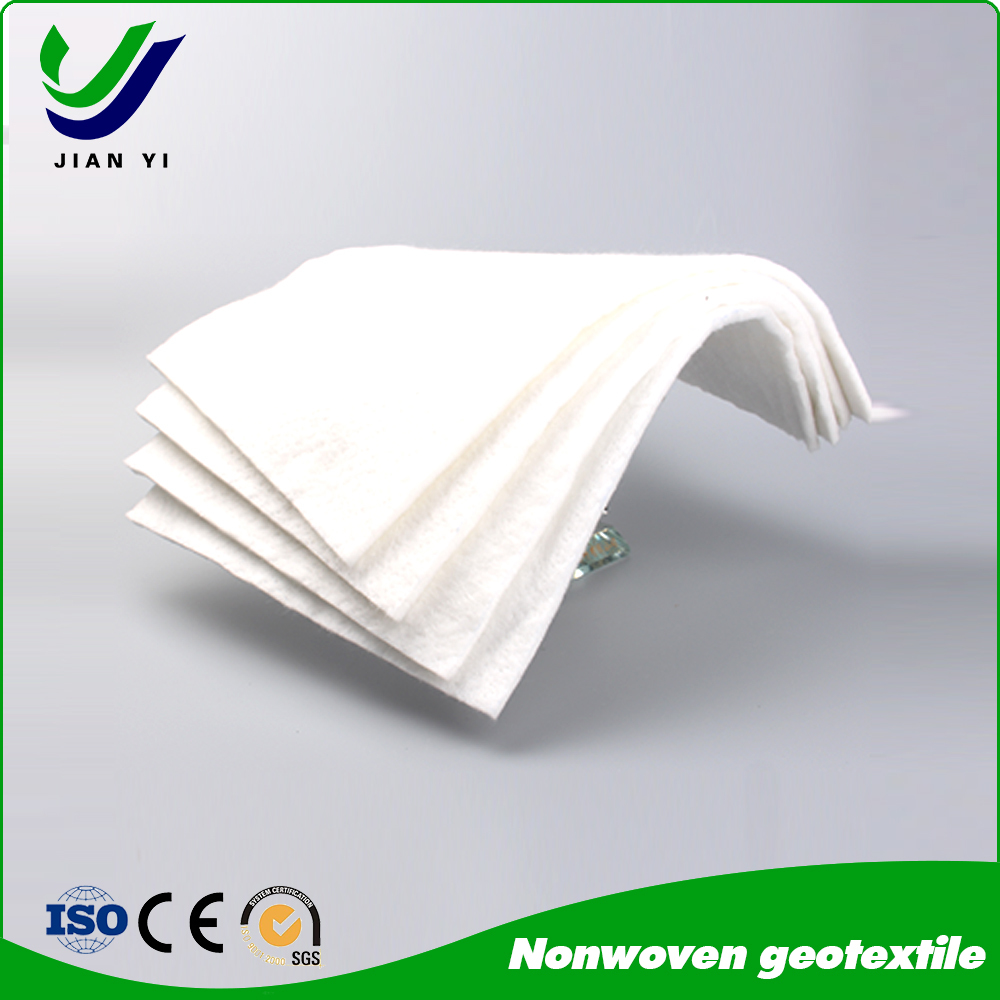

Engineered from continuous polypropylene or polyester filaments, our needle-punched long-filament geotextile delivers exceptional tensile strength, puncture resistance, and hydraulic efficiency. Designed for critical infrastructure projects where reliability and longevity are non-negotiable.
✅ Higher Strength-to-Weight Ratio
30–50% greater tensile strength at equivalent weights
Reduced material usage without compromising performance
✅ Enhanced Hydraulic Consistency
Uniform filament structure ensures stable flow rates (perm: 0.8–3.0 sec⁻¹)
Controlled pore size distribution (O₉₀: 70–200 μm) prevents soil piping

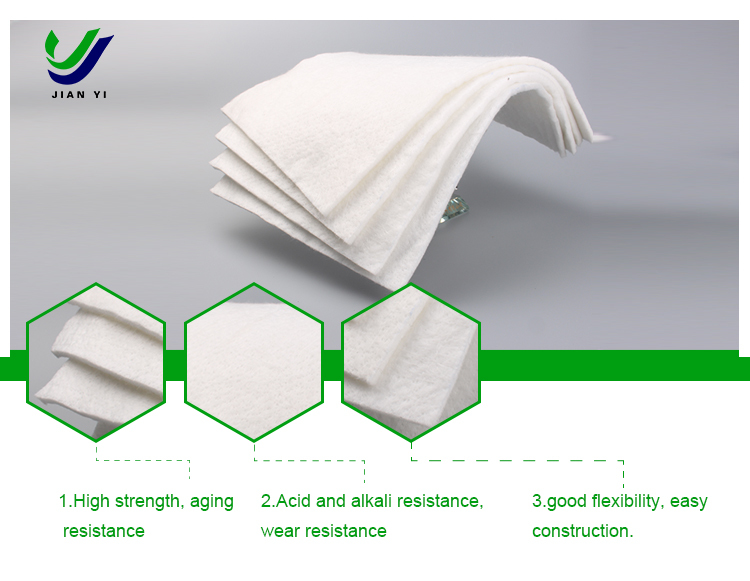

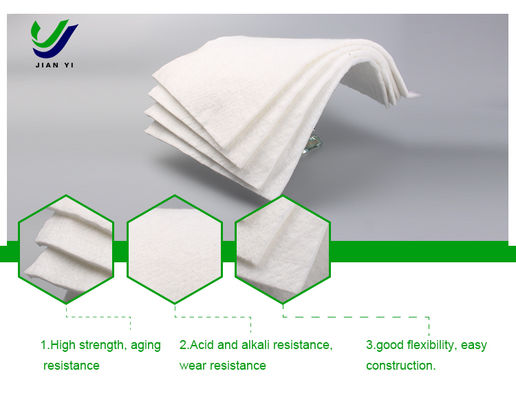

✅ Superior Durability
Continuous filaments resist fiber shedding during installation
Excellent creep resistance under sustained loads
UV-stabilized for 6–12+ months exposure
✅ Critical Project Savings
Thinner installations save excavation/backfill costs
Faster deployment with reduced seam overlaps
| Parameter | Values | Test Standard |
|---|---|---|
| Polymer | UV-stabilized PP or PET | ISO 10318 |
| Weight Range | 100–800 g/m² | ASTM D5261 |
| Thickness | 1.2–5.0 mm @ 2 kPa | ASTM D5199 |
| Tensile Strength | 12–60 kN/m (MD) | ASTM D6767 |
| Elongation | 40–80% | ASTM D4632 |
| CBR Puncture | 1,100–5,500 N | ASTM D6241 |
| Permittivity | 0.8–4.2 s⁻¹ | ASTM D4491 |
| Roll Sizes | Width: 5.0–6.3 m; Length: 50–250 m | Customizable |
